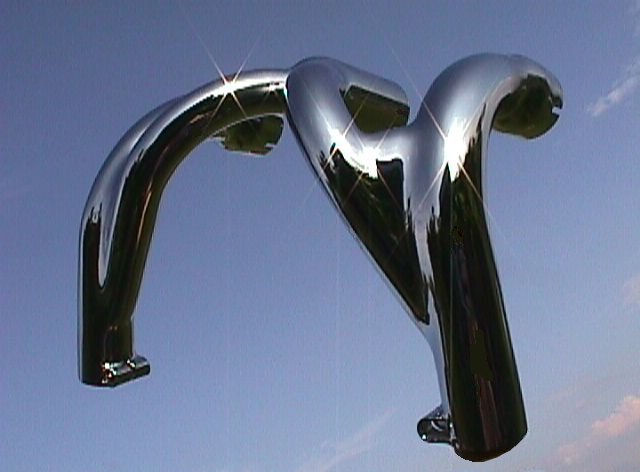

Triumph - T150 Exhaust Manifold

Part No: TRI-2018, NZ$685.00
I build these Manifolds from 1.6mm wall tube (16G).

When making these I construct the two 1" inner pipes, bend up the two outer pipes and set them in my Jig.

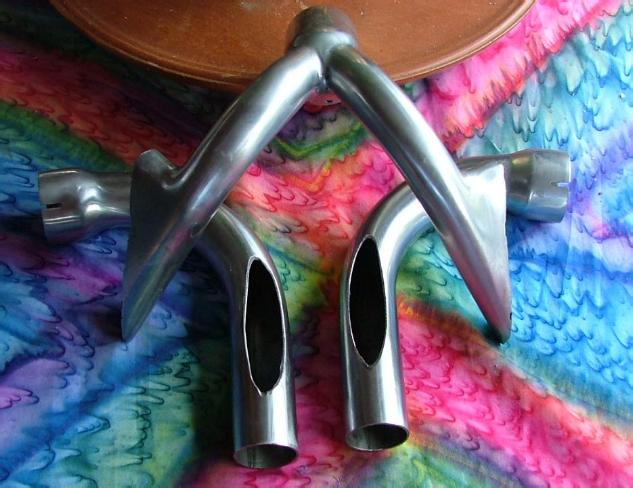

I then scribe around the joint where the two inner pipes meet the outer pipes, remove the outer pipes and cut this oblong shaped hole.

This is about 20mm wide by 60-70mm long.

This ensures that there is NO restriction of gas flow from the center port into the two outer pipes.
